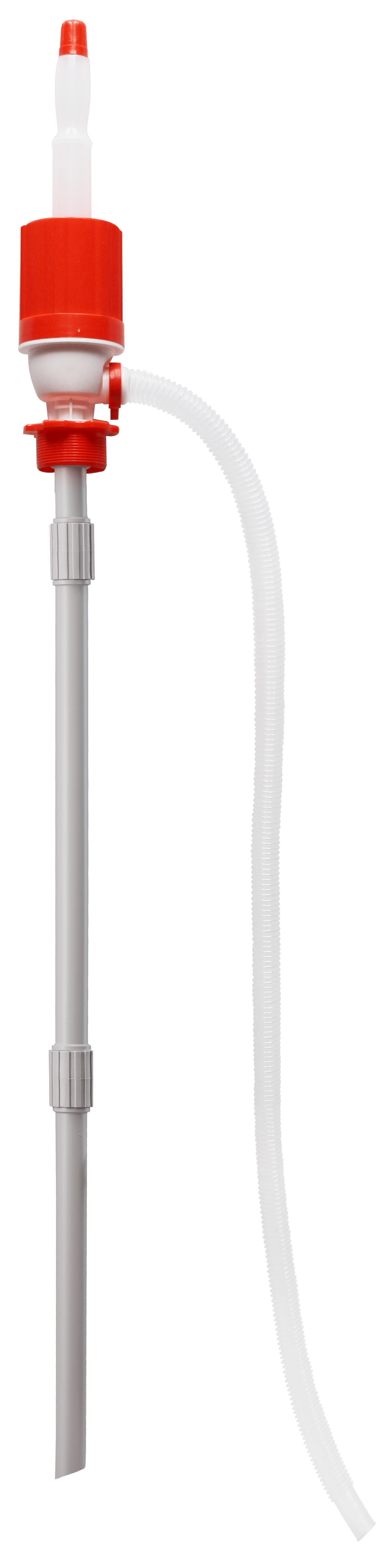

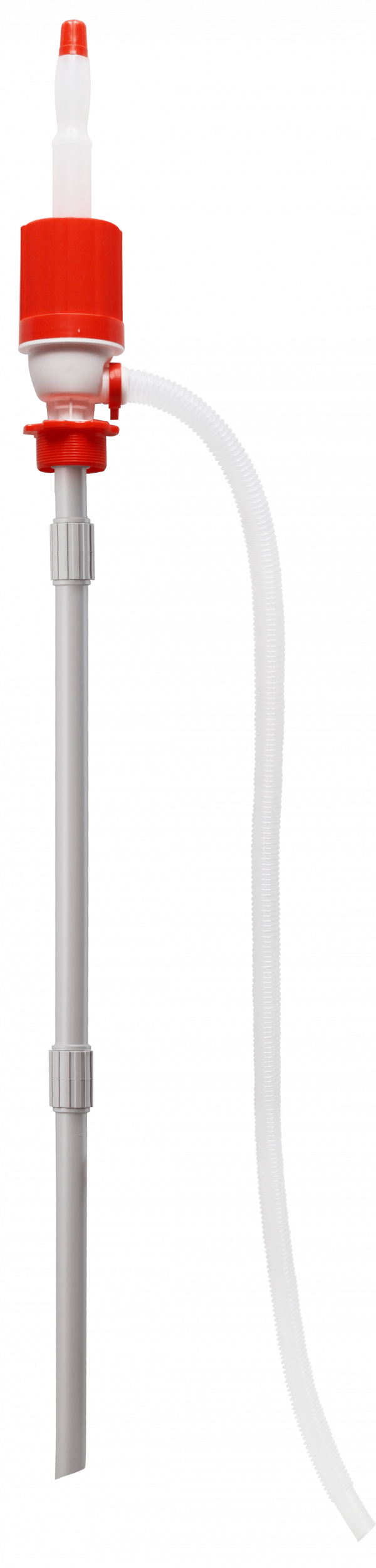

BOXED HD SYPHON PUMP 200 LITRE

Compact package reducing courier oversize charges

Applications & Features

* Performance as DSSP200 the heavy duty 200 litre syphon pump, with advantage of being supplied boxed in three parts allowing easy shipping.

* Suction type : manual up and down piston type / Heavy duty

FOR USE WITH:

* Petroleum products, light oils, kerosene, diesel oils, toluene, deodorants, corrosives, chemical Insecticides, soaps, detergents, mild acids, anti-freeze, liquid waxes, thinner, gasoline, water(not safe for drinking), etc.

* Non corrosive, non toxic plastic material construction, light-weight

* Depth adjustable with 30mm long adapter for standard 2″ drum bung adaptor

WARNING

* DO NOT use this pump for transferring the following liquids :

ACETONE, BENZENE, CREOSOL, ETHYL, PHENOL, METHYL ETHYL,
Concentrated CAUSTIC SODA LIQUID, NITRIC ACID,
HYDROCHLORIC ACID, SULPHURIC ACID, etc.

Specifications

* Total Length : 1,210 mm

* Suction tube Length : 855 mm

* Suction tube Inner Dia. : 20.5 mm

* Discharge Tube Length : About 1,180 mm

* Discharge Tube Inner Dia. : 20 mm

* Head Out Dia. : 86 mm

* Delivery Volume : About 19 litre / Min.

* Main Material : P.E, P.P

Product Code: DSSP200BOX Category: Tags: ,
